Intelligent slag remover

  • FOB Price: Please contact us freely
  • Min.Order Quantity: 1 Piece/Pieces
  • Delivery Time: As required
  • Payment Terms: T/T, L/C, D/P, D/A, ect.
  • Design: Customized for you
  • Product Detail

    Friendly Reminders

    Frequently Asked Questions

    How To Contact

    Product Tags

    Brief introduction:

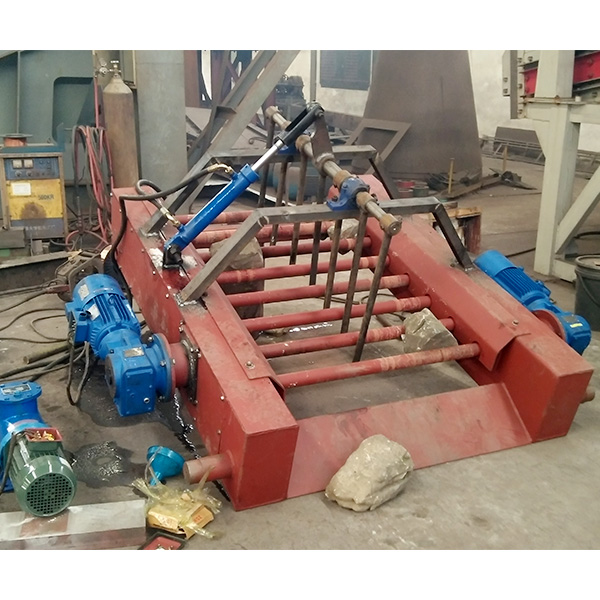

    The intelligent slag removing machine is installed at the end of the roller of the belt conveyor or below the hopper; The screen surface is composed of a lot of stainless steel or polyurethane rollers arranged in parallel. The roller is fixed on the shell through the bearing seat, and the two ends are rotated through the sprocket drive. The rotation direction and speed can be controlled by PLC to achieve the same (or opposite) direction of material flow.

    Its power source is K series helical gear reducer on the left and right sides, which is driven in both directions.

    In order to prevent materials from jamming the sieve shaft, it is equipped with safety safety device. The whole machine is equipped with a rotating mechanism, which can adjust the Angle according to the needs of the site.

    Applicable fields:

    ◎ solid bulk material separation and impurity removal;

    ◎ metallurgy, coal, ore, building materials, etc.

    ◎ conveying equipment in sintering plant, to effectively remove bulk, wire, thread, fabric and other sundries in materials transported by tape, and prevent bulk sundries from winding idlers, cutting belts and entering the next process.

    Performance features:

    1. Keep the material properties unchanged during the conveying process.

    2. The XCZB intelligent slag remover is controlled by PLC. Two sets of driving devices control single and double sieve rollers respectively.

    3. It is convenient to set the rotation speed of screen roller by using frequency converter.

    4. Bearing with seat sealed bearing, transmission box sealed tightly, dust can not be drilled.

    5. No vibration and low noise.

    6. High screening efficiency and large production capacity.

    7. Adjustable Angle. According to the nature of materials and the requirements of the site, the tilt Angle of the impurity removal screen can be adjusted between 5 and 30 degrees.

    8. No blocking or blocking screen. When the above situation occurs, the self-cleaning procedure of the sieve is started, and the debris is removed by adjusting the rotation direction and rotation speed of the sieve roller, and adjusting the inclination Angle of the deduster when necessary.

    9. The bearing is equipped with an automatic alarm device. When the bearing is short of oil or the temperature rises, the alarm device will give a warning and timely deal with it.

    10. The transmission part is equipped with an alarm device for broken chain.

    11. Long service life, convenient installation and simple maintenance.IMG20181224102412IMG20181224102342

    Technical parameters:

    Model

    Processing Capacity (t/h)

    Motor Speed (rpm)

    Roller Speed(r/min)

    Motor Power (Kw)

    Number Of Motors

    Under Sieve
    Granularity(mm)

    Screening Efficiency

    Screen Surface
    Width(mm)

    CZB500

    70-200

    1500

    82

    2×0.75

    2

    User-customize

    95%

    450

    CZB650

    120-400

    1500

    82

    2×1.1

    9

    95%

    590

    CZB800

    200-800

    1500

    82

    2×1.5

    2

    95%

    730

    CZB1000

    300-1600

    1500

    82

    2×2.2

    2

    95%

    910

    CZB1200

    600-3000

    1500

    82

    2×2.2

    2

    95%

    1090

    CZB1400

    800-4000

    1500

    82

    2X3.0

    2

    95%

    1270

    CZB1600

    2000-5000

    1500

    82

    2X4.0

    2

    95%

    1450

    CZB1800

    2800-9000

    1500

    82

    2X5.5

    2

    95%

    1630

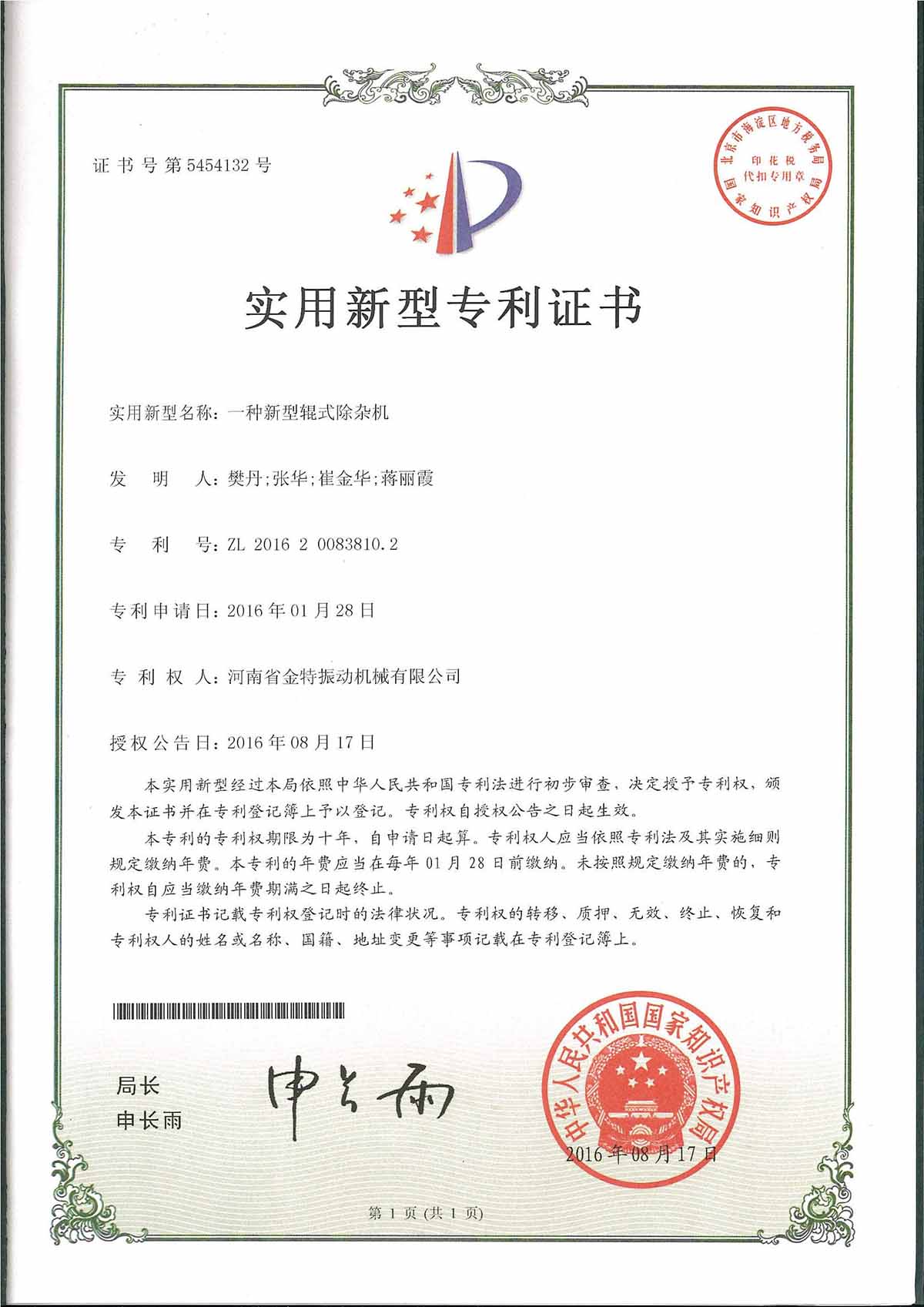

    Patent Certificate: 一种新型辊式除杂机
